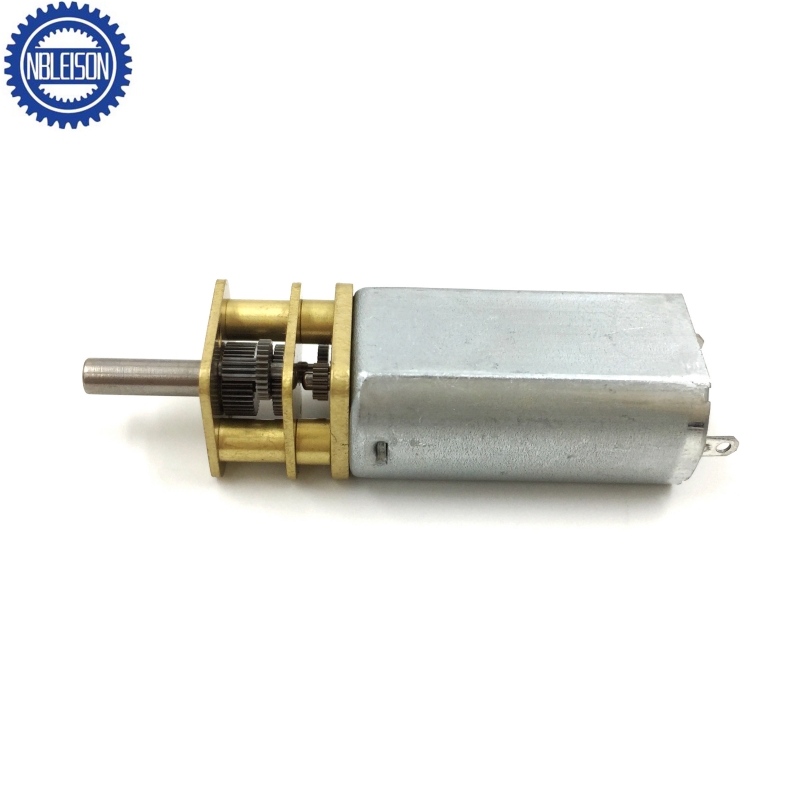

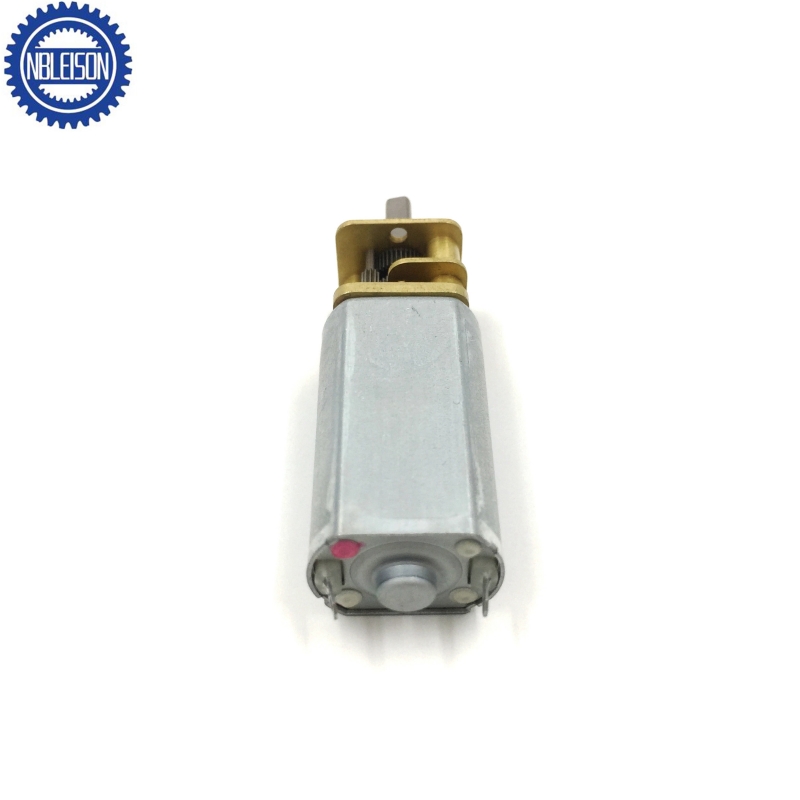

LS-050BGB Dc Gear Motor Deutschland

Applications:

Robotics, Smart homeapplicance system, Automatic door lock, Medical Equipment, Vending machine, beauty Apparatus, Baby Caib, Office Automation, etc.

Description:

Product name:	LS-050BGB Dc Gear Motor
Motor type:	carbon-brush commutator
Gear type:	Spur gearbox
Gear train material:	Metal Gear/Powder Metallurgy Gear Plastic Gear
Rotation direction:	CW/CCW reversible
Rated Voltage:	3V/5V/6V/9V/12V/18V/24V/36V/48V
Rated Speed:	5rpm to 3000rpm customized
Rated Torque:	0.02kg.cm-3kg.cm
OEM & ODM Service:	Available
Certificate:	CE,ROHS,REACH
Shaft Configuration:	D-cut,Round or other type,shaft length can customized
Customization item:	voltage, speed , torque, shaft
Additional requirements:	Lead wire, connector,IP Rating

Applications:

Robotics, Smart homeapplicance system, Automatic door lock, Medical Equipment, Vending machine, beauty Apparatus, Baby Caib, Office Automation, etc.

Motor Data

Model	Ratio	Voltage (v)	No Load		At Maximum Efficiency				Stall
Model	Ratio	Voltage (v)	Speed(r/min)	Current(mA)	Speed(r/min)	Current(mA)	Torque(g.cm)	Output(w)	Torque(g.cm)	Current(mA)
050BGB86-1110	1/86	6	106	55	90	150	350	0.35	1900	750
050BGB115-1768	1/115	6	190	180	170	280	600	0.45	4800	3300
050BGB360-08230	1/360	6	26	40	21	70	700	0.25	5000	450
050BGB360-12230	1/360	12	26	30	21	60	700	0.27	5000	400
050BGB360-08270	1/360	6	15	30	13	60	500	0.21	3200	280
050BGB86-1768	1/86	6	250	180	220	550	600	0.43	3500	3450
050BGB63-1768	1/63	6	350	180	290	650	550	0.29	2800	3450
050BGB35-1768	1/35	6	620	180	500	720	400	0.46	2000	3450
* Note: It's only typical technical data, special requirement can be customized.

Gearbox Data

Reduction Ratio	10	35	63	86	115	150	250	360
Direction Of Rotation	CCW				CW

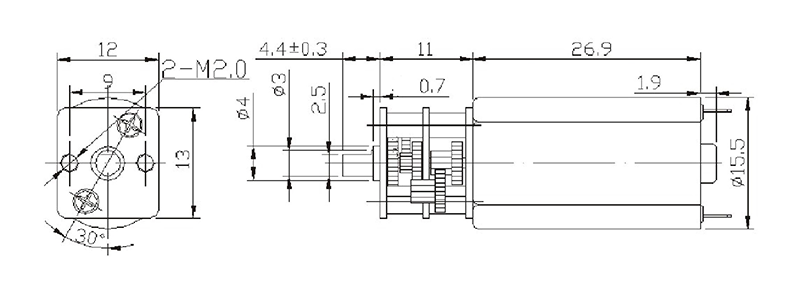

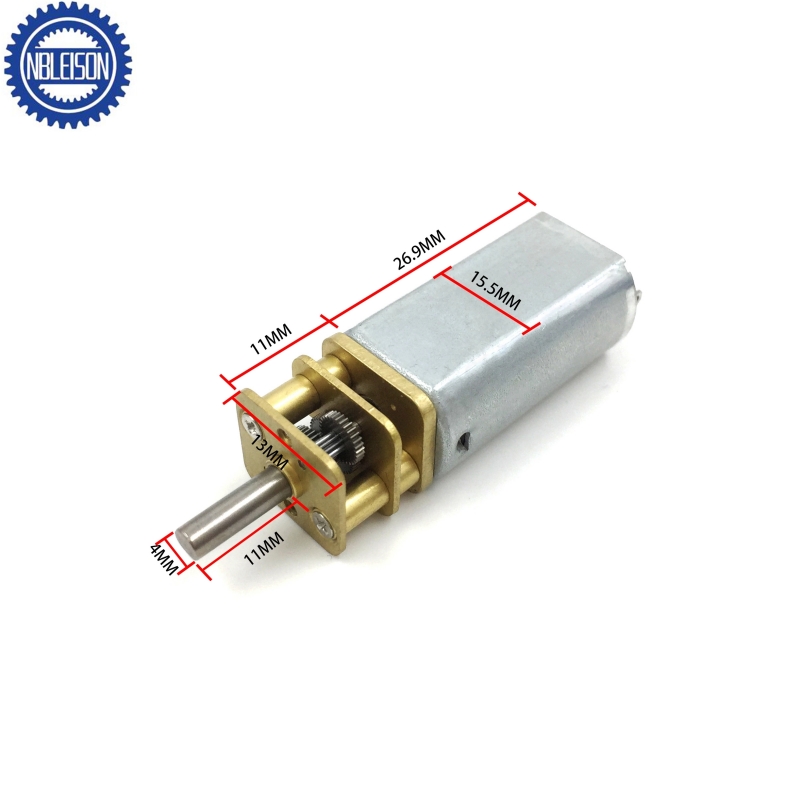

Mechanical Dimension

4.17 800

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
