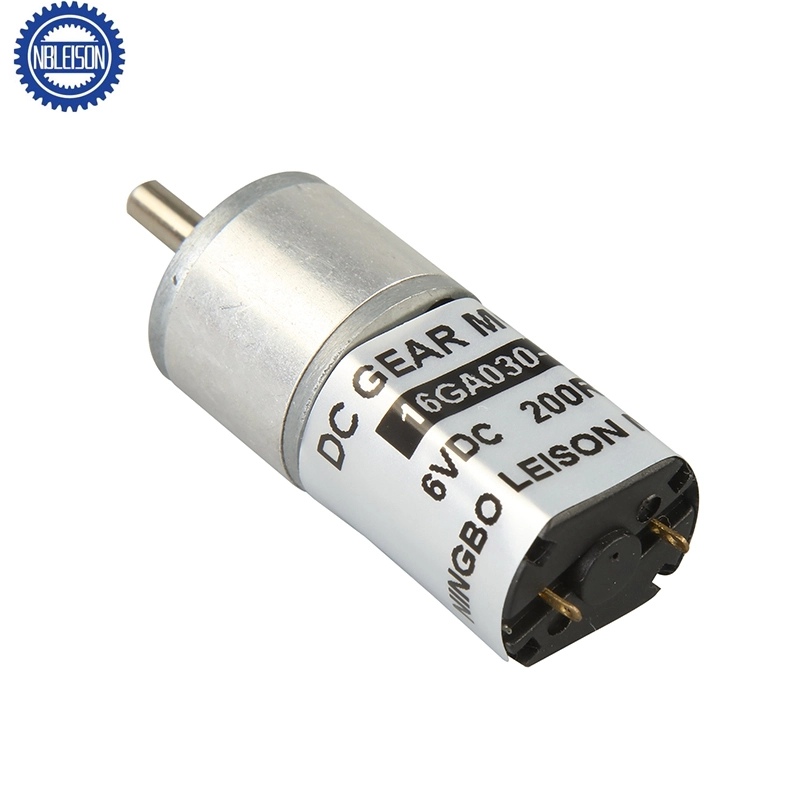

LS-16GA030 Dc Gear Motor

Applications:

Robotics, Smart homeapplicance system, Automatic door lock, Medical Equipment, Vending machine, beauty Apparatus, Baby Caib, Office Automation, etc.

Description:

Product name:	LS-16GA030 Dc Gear Motor
Motor type:	Carbon-brush commutator
Gear type:	Spur gearbox
Gear train material:	Metal Gear/Powder Metallurgy Gear Plastic Gear
Rotation direction:	CW/CCW reversible
Rated Voltage:	3V/5V/6V/9V/12V/18V/24V/36V/48V
Rated Speed:	1rpm to 2500rpm customized
Rated Torque:	0.05kg.cm-3kg.cm
OEM & ODM Service:	Available
Certificate:	CE, ROHS, REACH
Shaft Configuration:	D-cut,Round or other type,shaft length can customized
Customization item:	Voltage, speed , torque, shaft
Additional requirements:	Lead wire, connector, IP Rating

Applications:

Robotics, Smart homeapplicance system, Automatic door lock, Medical Equipment, Vending machine, beauty Apparatus, Baby Caib, Office Automation, etc.

Motor Data

Model	Voltage	No Load		At Maximum Efficiency					Starting
	Nominal	Speed	Current	Speed	Current	Torque		Output	Torque		Current
	Nominal	r/min	mA	r/min	mA	mN.m	g.cm	W	mN.m	g.cm	mA
LS-16GA030-100	3	70	60	52	170	29.4	300	0.16	78.4	800	450
LS-16GA030-50	6	250	80	200	250	11.7	120	0.25	98	1000	700
LS-16GA030-600	5	6.5	30	5	40	68.6	700	0.1	294	3000	700
LS-16GA030-24	12	775	100	620	260	68.6	120	180	58.8	600	500
LS-16GA030-600	6	10	45	8	130	73.5	750	0.23	294	3000	680
LS-16GA030-592	6	9	30	7.4	52	58.8	600	0.21	264.6	2700	150
LS-16GA030-91	6	106	72	83	146	19.6	200	0.18	72.5	740	420
LS-16GA030-148	6	70	82	59	145	29.4	300	0.22	147	1500	540
LS-16GA030-150	6	75	80	60	200	49	500	0.36	225.4	2300	500
LS-16GA030-81	6	110	50	90	102	29.4	300	0.11	176.4	1800	500
* Note: It's only typical technical data, special requirement can be customized.

Gearbox Data

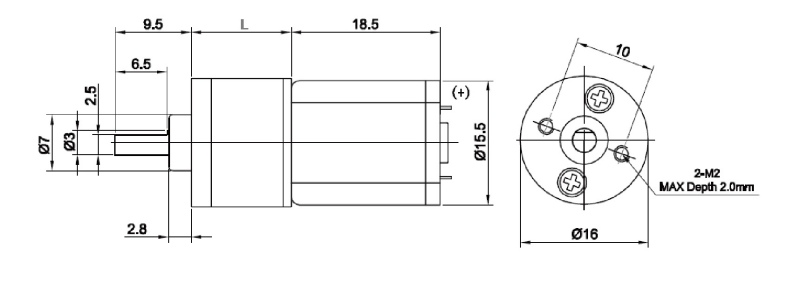

Mechanical Dimension

800

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
