Applications:
Robotics, Automation equipment, Packaging equipment, Medical equipment, Solar equipment, Pump, Food processor, Robot Lawn Mower etc;
Description:

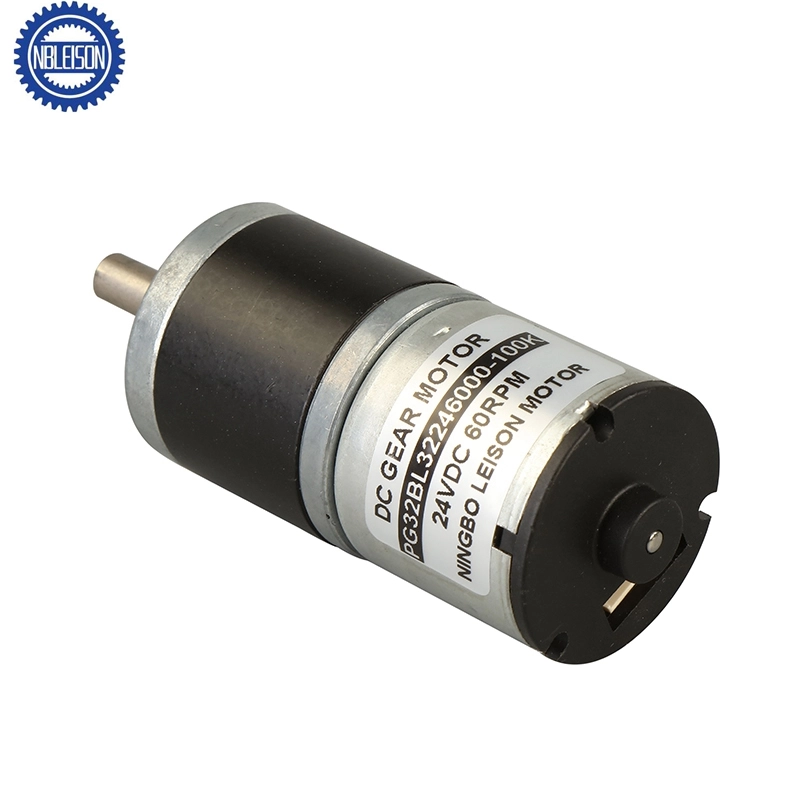

| Product name | LS-PG32BL32 Dc Planetary Gear Motor(Brushless Type) |
| Motor type | carbon-brushless commutator |
| Gear type | Straight gearwheel planet gearhead |
| Gearbox Diameter | 32mm |
| Gearbox housing material | 1045 Steel |
| Geartrain material | 40Cr Steel , Powder Metallurgy, Plastic Gear |
| Shaft material | 40Cr Steel |
| Output shaft support | Dual Ball bearing |
| Rotation direction | CW/CCW reversible |
| Rated Voltage | 6V/9V/12V/18V/24V/36V/48V |
| Rated Speed | 1rpm to 1500rpm customized |
| Rated Torque | 0.2kgf.cm-25kgf.cm1 |
| OEM & ODM Service | Available |
| Certificate | CE,ROHS,REACH |
| Encoder | Magnetic encoder |
| Shaft Configuration | D-cut,Keyway,Round ,Hexagon, Splined or other type,shaft length can customized |
| Customization item | voltage, speed , torque, flange , shaft, IP rating |
| Additional requirements | Lead wire, connector, coupling ,encoder,or other parts |
Applications:
Robotics, Automation equipment, Packaging equipment, Medical equipment, Solar equipment, Pump, Food processor, Robot Lawn Mower etc;
| Gearbox Data |
|
Number of stages |
1 stages reduction |
2 stages reduction |
3 stages reduction |
4 stages reduction |
5 stages reduction |
|
Reduction ratio |
3.3, 4.6 |
112 15.5, 21.5 |
37.7, 52.1, 72,100, |
126, 174, 241, 334, 462, |
423, 585, 810, 1120, 1549, 2142, |
|
Gearbox length “L” mm |
20.7 |
26.4 |
32.2 |
38 |
43.8 |
|
Max. Running torque |
10.0Kgf • cm |
20Kgf • cm |
50Kgf • cm |
50Kgf • cm |
50Kgf • cm |
|
Max. Gear breaking torque |
20.0Kgf • cm |
60.0Kgf • cm |
150 Kgf • cm |
150 Kgf • cm |
150 Kgf • cm |
|
Gearing efficiency |
90% |
81% |
73% |
65% |
59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG32BL32246320-21.5K
1. Output Speed(No-load)=6320/21.5=293RPM
2. Output Torque=70*21.5*81%=1219.05g.cm≈1.2kg.cm=0.12Nm (Should not be higher than Max. Gear Running Torque)
| Motor Data |
|
Motor name |
Rated Volt. |
No load |
Load torque |
Stall torque |
|||||
|
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current |
||
|
mA |
r/min |
mA |
r/min |
gf • cm |
W |
gf • cm |
mA |
||
|
BL3229 |
24 |
≤30 |
6320 |
≤240 |
5100 |
70 |
3.7 |
395 |
1000 |
|
*Note: It's only typical technical data,special requirement can be customzied. |
|||||||||

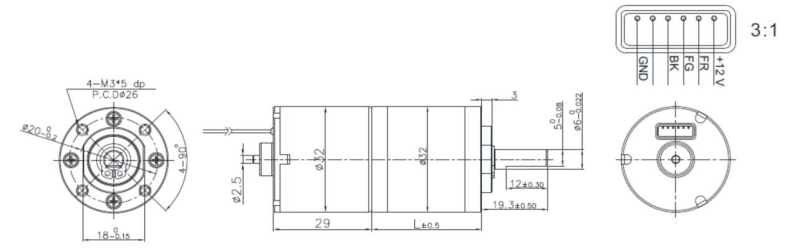

| Mechanical Dimensions |
* Note: The motor parts such as shaft size, mounting holes, encoders, connector and cables can be customized.
