Applications:
Robotics, Automatic door locks, Valve, Advertising lamp box, Robot Lawn Mower, Optical equipment, Electric curtain; Water treatment equipment, Solar Tracker, Golf Trolley etc.
Description:

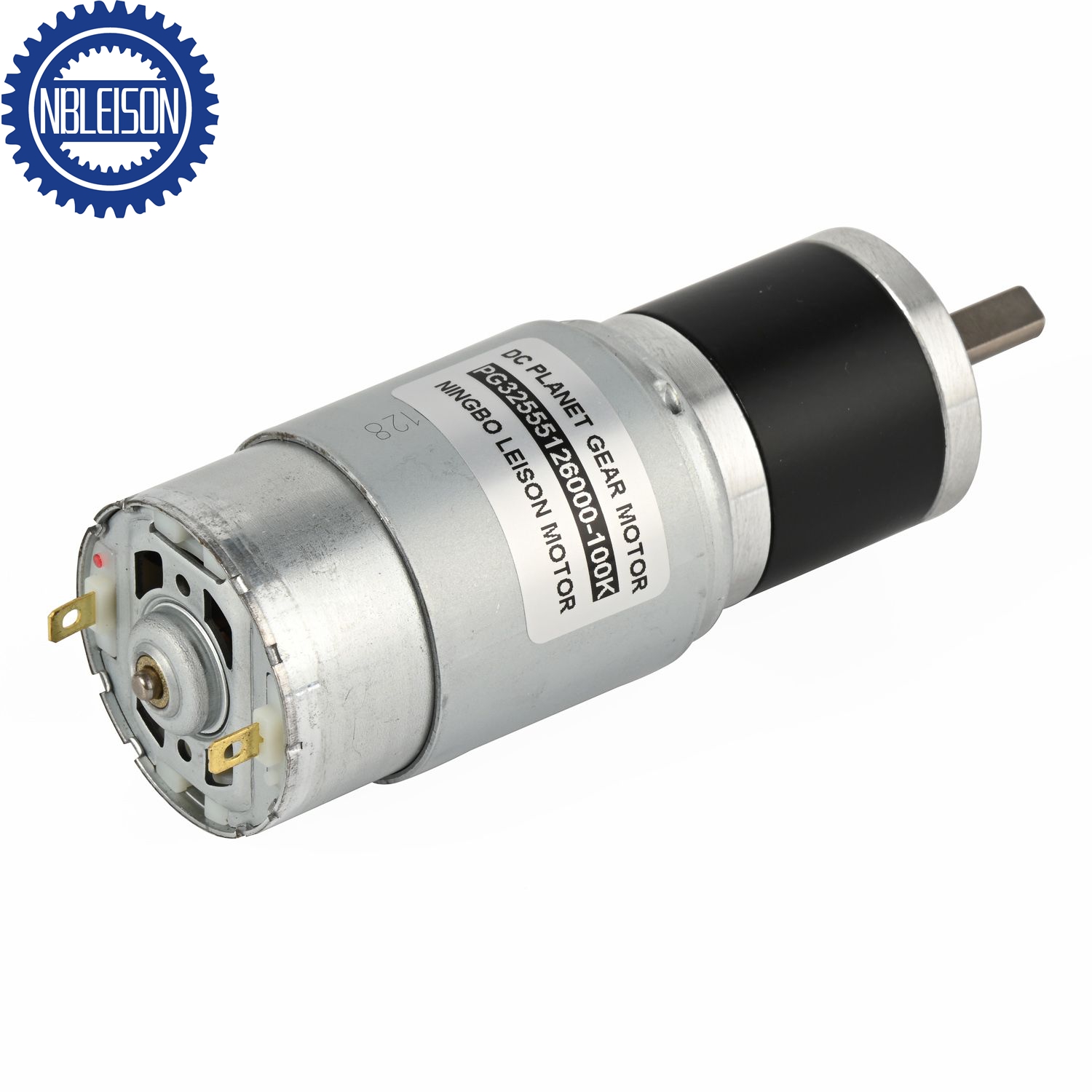

| Product name: | LS-PG32M555 Dc Planetary Gear Motor |
| Motor type: | Carbon-brush commutator |
| Gear type: | Straight gearwheel planet gearhead |
| Gearbox Diameter: | 32mm |
| Gearbox housing material: | 1045 Steel |
| Geartrain material: | 40Cr Steel, Powder Metallurgy, Plastic Gear |
| Shaft material: | 40Cr Steel |
| Output shaft support: | Dual Ball bearing |
| Rotation direction: | CW/CCW reversible |
| Rated Voltage: | 6V/9V/12V/18V/24V/36V/48V |
| Rated Speed: | 1rpm to 1500rpm customized |
| Rated Torque: | 10-100kgf.cm |
| OEM & ODM Service: | Available |
| Certificate: | CE, ROHS, REACH |
| Encoder: | Magnetic encoder |
| Shaft Configuration: | D-cut, Keyway, Round, Hexagon, Splined or other type,shaft length can customized |
| Customization item: | voltage, speed, torque, flange , shaft, IP rating |
| Additional requirements: | Lead wire, connector, coupling ,encoder,or other parts |
Applications:
Robotics, Automatic door locks, Valve, Advertising lamp box, Robot Lawn Mower, Optical equipment, Electric curtain; Water treatment equipment, Solar Tracker, Golf Trolley etc.
| Gearbox Data |
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.3 , 4.6 | 11.2, 15.5 21.5 | 37.7,52.1,72100 | 126, 174 , 241, 334, 462 | 423, 585 , 810 1120, 1549 , 2142 |
| Gearbox length "L" mm | 20.17 | 26.4 | 32.2 | 38 | 43.8 |
| Max. gear running torque | 10.0kgf-cm | 20.0kgf-cm | 50.0kgf-cm | 50.0kgf-cm | 50.0kgf-cm |
| Max. gear breaking torque | 20.0kgf-cm | 60.0kgf-cm | 150.0kgf-cm | 150.0kgf-cm | 150.0kgf-cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor Data |
| Motor Name | Rated Volt.V | No Load | Load Torque | Stall Torque | |||||
| Current | Speed | Current | Speed | Torque | Output Power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | A | ||
| RS-555123000 | 12 | ≤140 | 3000 | ≤600 | 2458 | 179 | 4.51 | 1210 | 3.1 |
| RS-555124500 | 12 | ≤200 | 4500 | ≤900 | 3929 | 183 | 7.42 | 1508 | 6.0 |
| RS-555126000 | 12 | ≤320 | 6000 | ≤1450 | 5244 | 215 | 11.5 | 1722 | 9.3 |
| RS-555243500 | 24 | ≤115 | 3500 | ≤480 | 3041 | 246 | 7.7 | 1720 | 2.7 |
| RS-555244500 | 24 | ≤110 | 4500 | ≤460 | 3984 | 189 | 7.8 | 1713 | 3.4 |
| RS-555246000 | 24 | ≤140 | 6000 | ≤920 | 5305 | 243 | 13.2 | 2065 | 5.5 |
| RS-555249500 | 24 | ≤280 | 9500 | ≤1900 | 8190 | 386 | 32.5 | 2797 | 11.7 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||

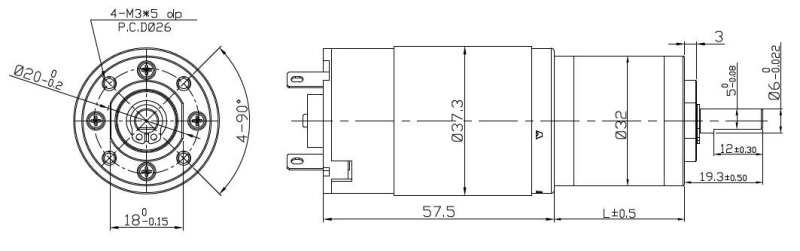

| Mechanical Dimension |
*Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
